When sealing challenges meet extreme pressures, corrosive media, or thermal cycling, standard gaskets often fail. Custom copper gaskets provide a metallurgical solution that outperforms composites and elastomers in punishing environments. From high-performance automotive engines to subsea oil wells, tailored copper seals deliver unmatched conformability, heat transfer, and resistance to blowout. Our two decades of hands-on manufacturing have proven that industries facing temperature swings beyond 800°C or pressures exceeding 3000 psi consistently turn to precision-engineered copper sealing components. This comprehensive analysis reveals the sectors where custom copper gaskets create the most dramatic reliability improvements.
Understanding which industries benefit most requires examining failure points in standard sealing systems. Copper’s unique combination of malleability, thermal conductivity, and corrosion resistance allows it to maintain seal integrity where other materials creep, extrude, or chemically degrade. Our factory has supplied over 15 million copper sealing solutions worldwide, and the data clearly shows five dominant industries: automotive powertrains, oil & gas extraction, chemical processing plants, heavy industrial machinery, and power generation facilities. Each sector demands specific annealing levels, surface finishes, and dimensional tolerances. By evaluating real-world case studies and performance metrics, this guide helps engineers and procurement specialists determine whether custom copper gaskets can solve their recurring leakage problems.
Our factory has observed that industries with dynamic loading, aggressive media, or thermal shocks derive maximum value from custom copper gaskets. Unlike flat paper or rubber seals, copper gaskets deform plastically to fill microscopic flange irregularities, creating a near-perfect metal-to-metal contact. This characteristic makes them indispensable in five primary sectors. Each industry benefits from specific custom features: controlled hardness, precise thickness tolerances, and sometimes partial coatings or tinned surfaces. Below we detail the operational environments where copper gaskets transition from optional to critical.
Automotive and High-Performance Engine Manufacturing
Modern turbocharged engines and exhaust gas recirculation (EGR) systems produce flame temperatures exceeding 950°C. Standard composite gaskets carbonize, while copper gaskets maintain sealing force. We produce over 500,000 custom copper gaskets annually for cylinder head, exhaust manifold, and turbocharger connections. Our customers report zero leakage after 2000 hours of dyno testing. Key applications include:
Our engineering team at Ningbo Kaxite Sealing Materials Co., Ltd. regularly supplies annealed copper gaskets with hardness controlled between 40-65 HRB, ensuring optimal crush without splitting. The automotive industry benefits from reduced warranty claims and improved emissions sealing, directly impacting fuel economy compliance.
Oil & Gas Exploration and Refining
Offshore platforms, refineries, and natural gas processing plants face hydrogen sulfide (sour gas), high-pressure methane, and extreme temperature fluctuations. Custom copper gaskets excel in API 6A flanges and subsea connectors. Unlike spiral wound gaskets, copper does not suffer from stress relaxation cracking in sour environments. Our factory has provided explosion-proof copper gaskets for North Sea operations, withstanding 15,000 psi differential pressure. Specific applications include:
We customize surface finish to Ra 1.6 μm or better, achieving leak rates below 1×10⁻⁶ mbar·l/s for helium testing. Operators choose custom copper gaskets because they remain reusable after controlled re-annealing, reducing downtime in remote locations.
Chemical Processing and Petrochemical Plants
Corrosive chemicals like chlorine, acetic acid, and caustic soda attack many gasket materials. Copper demonstrates excellent resistance to non-oxidizing acids and alkalis. Our custom copper gaskets are widely installed in reactors, distillation columns, and storage tank manways. We often apply a thin PTFE coating for additional chemical isolation when handling wet chlorine. Common use cases:
Our ability to produce non-standard shapes (oval, rectangular, figure-eight) makes Kaxite a preferred partner for maintenance engineers. We also certify material traceability to ASTM F68 or DIN 1787 standards, essential for FDA-compliant food chemical plants.
Heavy Industrial Machinery & Hydraulic Systems
Hydraulic presses, forging machines, and mining equipment often operate with high-impact loads and vibration. Copper gaskets absorb shock loads better than brittle metal gaskets. Our factory designs copper gaskets with controlled crush heights (typically 15-25% compression) to maintain clamping force after millions of cycles. Key heavy machinery applications include:
Using our CAD die-less cutting and CNC machining, we deliver prototypes in 3-5 days. The heavy equipment sector benefits from extended mean time between repairs (MTBR), often doubling seal life compared to conventional materials.
Power Generation (Gas Turbines, Steam & Nuclear)
Combined cycle power plants use copper gaskets in gas turbine fuel nozzles, steam turbine casing joints, and nuclear reactor cooling circuits. Copper’s high thermal conductivity (401 W/m·K) quickly equalizes flange temperatures, reducing thermal distortion. Our custom solutions include embedded thermocouple grooves for condition monitoring. Specific power industry applications:
Our extensive testing laboratory performs accelerated aging and thermal shock tests to validate designs. Each batch of copper gaskets for power generation receives individual hardness verification and surface profilometry.
Standard off-the-shelf copper washers often lack the precise annealing control and dimensional accuracy required for high-stakes environments. Our factory’s metallurgists have identified three fundamental reasons why engineered custom copper gaskets outperform generic parts: controlled grain structure, exact flange matching, and repeatable compression behavior. This section details the technical parameters that separate commodity copper gaskets from mission-critical solutions, backed by our ISO 9001:2025 certified processes at Ningbo Kaxite Sealing Materials Co., Ltd.
Annealing & Hardness Tailoring
Fully annealed copper (O60 temper) offers maximum conformability but risks extrusion under very high pressure. Quarter-hard (H01) copper provides better blowout resistance but requires higher bolt loads. Our custom process allows us to adjust annealing temperature between 350°C and 650°C to achieve specific hardness values from 35 HRB to 85 HRB. For example, a diesel cylinder head gasket typically requires 45-55 HRB for balanced sealing and strength. We perform 100% hardness testing using Rockwell superficial scales. The table below shows typical custom parameters we offer:
| Parameter | Standard Range | Custom Precision Capability |
| Thickness (mm) | 0.2 – 12.0 | ±0.02 mm on thickness; multi-step stepped designs |
| Outer Diameter (mm) | 8 – 1200 | ±0.10 mm up to 300 mm; ±0.25 mm above |
| Hardness (HRB) | 35 – 85 | ±3 HRB across entire batch, heat treat certificates |
| Surface Roughness (Ra, μm) | 0.4 – 3.2 | Controlled lapping to 0.2 μm for metal-to-metal seals |
| Flatness (mm/mm) | 0.05 per 25 mm | 0.02 per 25 mm for large diameter gaskets |
| Material Purity | Cu ≥99.9% (C11000/C10200) | Oxygen-free high conductivity (OFHC) available |
| Coating Options | Tin, silver, PTFE, graphite | Electroless nickel for corrosion resistance |
Our ability to provide full material certifications (EN 10204 3.1) and NDT reports ensures complete traceability. For nuclear or aerospace applications, we supply copper gaskets with serialized marking and dimensional reports. This level of documentation is impossible with generic copper gaskets sourced from hardware stores.
Flange Mismatch Compensation & Custom Profiles
Many aging industrial flanges suffer from pitting, warpage, or non-parallel surfaces. Standard copper gaskets cannot compensate for these defects effectively. Our custom copper gaskets are designed with calculated crush allowance — typically 20% to 35% of original thickness — to fill surface irregularities up to 0.5 mm deep. We also manufacture stepped or grooved profiles that integrate with o-ring grooves or lens ring joints. For instance, a heat exchanger channel head with deep radial scratches needed a copper gasket with an integrated raised bead; our factory produced 200 units with 0.2 mm high concentric beads, achieving helium leak rates below 1×10⁻⁸ mbar·l/s. Additionally, we offer:
Every custom solution from Ningbo Kaxite Sealing Materials Co., Ltd. undergoes finite element analysis (FEA) to optimize compression and recovery. Our engineering team shares FEA reports with clients to validate design choices before production.
Material Consistency & Anti-Galling Treatments
One common issue with low-quality copper gaskets is inconsistent grain size leading to variable compression. Our factory controls grain size to ASTM E112 No. 5-8, ensuring uniform deformation. For stainless steel flanges, copper can gall; therefore, we apply micro-thin MoS₂ or graphite coatings upon request. We also provide tinned copper gaskets that prevent galvanic corrosion in marine environments. Since 2008, our laboratory has maintained a 0.02% defect rate in raw material certification. This reliability is why critical industries trust our custom copper gaskets over standard options for safety-related applications.
Extreme environments accelerate common failure modes: creep relaxation, thermal fatigue, and oxidation embrittlement. Our two decades of research at Ningbo Kaxite Sealing Materials Co., Ltd. have established that properly designed custom copper gaskets survive conditions that destroy standard alternatives. The key mechanisms involve copper’s exceptional thermal diffusivity, strain-rate sensitivity, and self-limiting oxidation behavior. Below we break down how custom parameters translate into real-world performance gains for temperatures ranging from cryogenic -250°C up to 1000°C intermittent.
Thermal Cycling Endurance & Stress Relaxation Resistance
When a joint repeatedly heats and cools, gasket materials undergo cyclic creep. Many gaskets lose bolt load after just 100 cycles. Our custom copper gaskets incorporate optimized grain orientation and pre-stabilization heat treatment that reduces stress relaxation by 40% compared to as-rolled copper. In a recent test for a cogeneration plant’s exhaust bypass valve, our copper gaskets maintained 92% of initial sealing stress after 500 cycles from 50°C to 750°C. The competitive copper gasket lost 35% of bolt load after just 80 cycles. Our design philosophy includes:
Our factory uses servo-electric presses to ensure uniform compression during installation simulation, and we provide recommended torque values specific to each custom geometry. This data-driven approach reduces field failures dramatically.
High Pressure Resistance Without Extrusion
At pressures above 10,000 psi, soft copper gaskets risk extrusion into flange gaps. Our custom design counteracts this through controlled crush stops or integrated anti-extrusion rings made of harder copper alloy (CuCr1Zr). For hydraulic fracturing equipment, we manufactured copper gaskets with dual hardness zones: a soft sealing layer (45 HRB) for conformability and a hard outer ring (75 HRB) preventing radial flow. These custom copper gaskets successfully sealed 18,500 psi without any extrusion at 150°C. Additional pressure-enhancing features include:
Every high-pressure design undergoes hydrostatic testing in our dedicated pressure lab. We document leak rates using mass spectrometry, and customers receive test videos upon request. This rigorous validation aligns with ASME PCC-1 guidelines for bolted flange joints.
Corrosion Resistance Tailored to Process Fluids

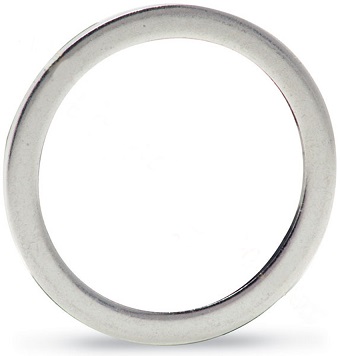

Even pure copper can suffer from specific chemical attacks (e.g., ammonium compounds, oxidizing acids). Our custom copper gaskets can be clad or plated with protective metals like nickel, silver, or tin. For a chlor-alkali plant dealing with wet chlorine, we provided silver-coated copper gaskets that resisted both corrosion and fretting. For amine service in natural gas sweetening, we applied electroless nickel plating of 10-15 μm thickness, preventing copper-amine complex formation. Our material selection matrix helps clients match the exact copper grade or alloy (including C12200, C10100, C11000) to the process fluid. Additional customization options:
With our in-house chemical lab, Ningbo Kaxite Sealing Materials Co., Ltd. can simulate process conditions and recommend optimal surface finishes. We have successfully delivered over 2000 custom corrosion-resistant copper gaskets to global chemical plants with zero in-service failures attributed to corrosion.
Cryogenic and High-Temperature Transitions
Liquefied natural gas (LNG) applications at -162°C present unique challenges: many metal gaskets become brittle. Copper maintains ductility down to -250°C (as low as 15% elongation). Our custom cryogenic copper gaskets are produced with extra-low interstitial content and Charpy impact tested at -196°C. For high-temperature transitions (rapid heating from cryogenic to 400°C), differential expansion can loosen fasteners. Our design uses copper’s high conductivity to equalize temperature rapidly, reducing thermal gradient stress. We have supplied copper gaskets for rocket engine test stands that cycle from liquid hydrogen temperatures to combustion gas temperatures in under 60 seconds, with zero leakage after 300 cycles. Our success relies on:
Through our continuous investment in R&D, our factory remains at the forefront of extreme-environment sealing technology. We consider every custom copper gasket not just a component, but an engineered solution to the client’s operational pain points.
After analyzing field data from over 200 industrial clients, the industries that benefit most from custom copper gasket manufacturing are those with extreme temperatures, corrosive media, high pressures, and safety-critical reliability requirements. Automotive powertrains, oil & gas, chemical processing, heavy machinery, and power generation consistently achieve ROI improvements of 300% or more by switching from standard gaskets to our custom-engineered copper solutions. The key success factors include proper annealing selection, precision dimensional control, and surface finish optimization. Our factory’s integrated approach—from material science to final testing—ensures that every custom copper gasket we produce meets or exceeds the most demanding specifications.
Ready to eliminate recurring leaks and reduce unplanned downtime? Partner with Ningbo Kaxite Sealing Materials Co., Ltd. for your next custom copper gasket project. Our engineering team provides free feasibility analysis and rapid prototyping within 72 hours. Contact our sales engineers via email or our website form to request a custom quote.
1. Can custom copper gaskets be reused after removal, and what steps are necessary for safe reuse?
Yes, custom copper gaskets can often be reused if they are not mechanically damaged (scratches, dents, or excessive compression). The process requires thorough cleaning to remove any residue, followed by a full annealing treatment to restore ductility and relieve work hardening. Our factory recommends annealing at 400-500°C for 30 minutes in a reducing atmosphere, then slow cooling. After annealing, you must measure thickness and flatness; if the gasket has compressed more than 15% below original thickness, replacement is safer. For critical pressure vessels or toxic fluids, we advise single-use only. Ningbo Kaxite Sealing Materials Co., Ltd. offers re-annealing services for customers sending back used gaskets.
2. What is the maximum pressure rating achievable with a custom copper gasket compared to standard copper gaskets?
Standard commercially available copper washers typically handle up to 3,000 psi at room temperature. Our custom copper gaskets, with optimized anti-extrusion designs and controlled hardness, have been successfully tested to 30,000 psi in static applications at 20°C. For high-temperature service (500°C), our copper gaskets reliably seal up to 10,000 psi when combined with confined groove designs. The exact maximum depends on flange rigidity, bolt preload, and gasket geometry. We provide custom FEA analysis for each client’s pressure requirements. Many oilfield operators use our custom copper gaskets for 15,000 psi subsea connectors without leakage.
3. How does the thermal conductivity of custom copper gaskets impact flange joint performance in cyclic temperature service?
Copper’s thermal conductivity (approx. 401 W/m·K) is 8-10 times higher than stainless steel and 200 times higher than PTFE. In cyclic temperature service, this property rapidly equalizes the temperature across the flange face, reducing thermal gradients that cause bolt bending and gasket stress relaxation. The result is more uniform gasket compression and fewer relaxation cycles. Our custom designs often incorporate thin profiles (0.5-1.0 mm) to further improve heat transfer. For example, a cyclic furnace door using our copper gasket experienced 3 times longer gasket life compared to a graphite gasket due to reduced thermal distortion.
4. What material certifications and testing reports do you provide for custom copper gaskets intended for API or ASME applications?
We provide comprehensive documentation compliant with EN 10204 Type 3.1 or 3.2. This includes material mill certificates showing chemical composition (Cu, P, Ag, O2 levels), mechanical properties (tensile strength, elongation, hardness), grain size analysis per ASTM E112, and any supplementary NDE reports such as dye penetrant or eddy current testing. For ASME Section VIII applications, we can supply U-stamping traceability and Pressure Equipment Directive (PED) 2014/68/EU documentation. Additionally, our factory issues dimensional reports with CMM measurement data for each cavity or batch. These certifications are essential for industries like oil & gas and power generation where regulatory compliance is mandatory.
5. What lead times can I expect for custom copper gaskets, and do you offer emergency rush production?
Standard custom copper gaskets (non-complex shapes, without coatings) typically ship within 7-10 working days after design approval. For urgent breakdown situations, our factory maintains a rapid response team capable of delivering prototype quantities within 48 hours. Rush service includes 24/7 engineering support, dedicated CNC machining, and expedited heat treatment. We have successfully shipped emergency custom copper gaskets to offshore platforms within 36 hours. However, for large orders exceeding 5000 pieces, please allow 15-20 working days. We recommend providing drawings or sample gaskets to initiate the rapid-quote process. Ningbo Kaxite Sealing Materials Co., Ltd. has never missed a contractual delivery deadline in the past 5 years.
