Kaxite Epoxy Fiberglass Tube (Style G10) is a pultruded composite tube formed by heat-pressing alkali (E-glass) fabric that has been impregnated with epoxy resin. The cross-wound glass fabric gives the tube nearly equal mechanical strength in the lengthwise and crosswise directions, so it resists crushing and bending without the direction-sensitive weakness of a filament-wound tube. Dielectric strength reaches 22 kV/mm at 0.5–1 mm wall thickness, surface and volume resistivity are 1.0×1013 Ω or above, and the dissipation factor Tan δ at 50 Hz is 0.05 or below. Density is 1.70–1.90 g/cm³ and Martens heat resistance is 200°C or above. The tube is used as an electrical and mechanical insulation structural component in generators, transformers, motors, inverters, fixtures and general machine parts. Available in various diameters and wall thicknesses, with wholesale quantity, custom dimensions, OEM labeling and free samples offered.
Kaxite Epoxy Resin Fiberglass Gaskets (G10/FR4) are machined from electrical-grade alkali-free E-glass woven fabric impregnated with epoxy resin, then laminated under heat and pressure. The standard G10 grade contains no flame retardant; adding a flame retardant agent produces FR4 grade with UL 94 V-0 flame retardance. Dielectric strength is 22 kV/mm at 0.5–1 mm thickness, 20 kV/mm at 1.1–2 mm and 18 kV/mm above 3 mm, surface and volume resistivity are 1.0×1013 Ω or above, and Martens heat resistance is 200°C or above. Density is 1.70–1.90 g/cm³. Thickness ranges from 0.5 mm to 50 mm and above, and every part is CNC machined to drawing. The gaskets are used in transformers, electronic apparatus, switchgear, industrial furnaces, semiconductors, nuclear power, hydropower and insulation spacers. Wholesale quantity, custom dimensions, OEM labeling and free samples are available.
Neoprene Faced Phenolic Gaskets have been used as standard ''flat'' isolating gaskets in the oil and gas industries for many years. Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing an effective sealing surface.
Type D Flange Insulation Gasket are used for controlling losses due to corrosion. They can be used to control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.

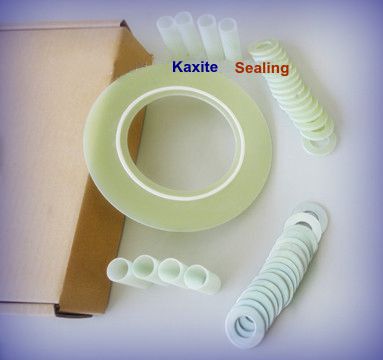

Flange Insulation Gasket Sets are usd to solve the sealing and insulating problems of flanges, and to control losses due to corrosion and leakage of pipelines. They are widely used to seal flanges and control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.
Quality Insulation gasket kits adopt one of most effective methods for sealing and insulating all types of flanges. welcome to choice Kaxite seinseal flange insulation gaskets
